Digital Read-out Receiver
HL760U
Designed for general, concrete and site preparation contractors

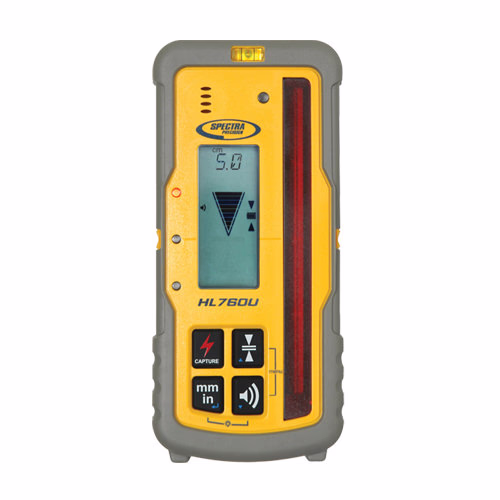

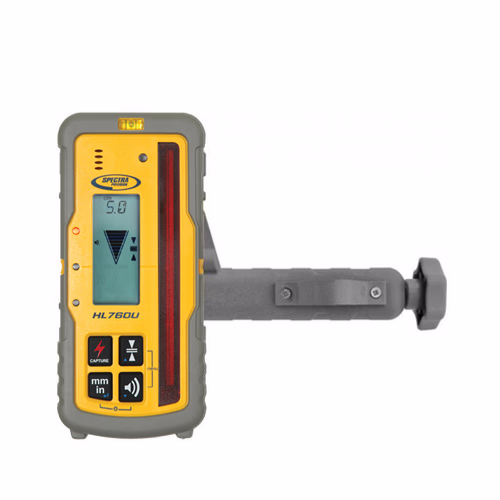

The HL760U Digital Readout Receiver is a highly versatile laser receiver for basic and advanced leveling and aligning applications. It is designed for general, concrete and site preparation contractors. The HL760U measures elevations across the site, and is ideal for use with any rotating transmitter including red beam and green beam lasers.
Enquire Now
Precision & Durability
Digital Accuracy and Rugged Performance for Demanding Jobsites

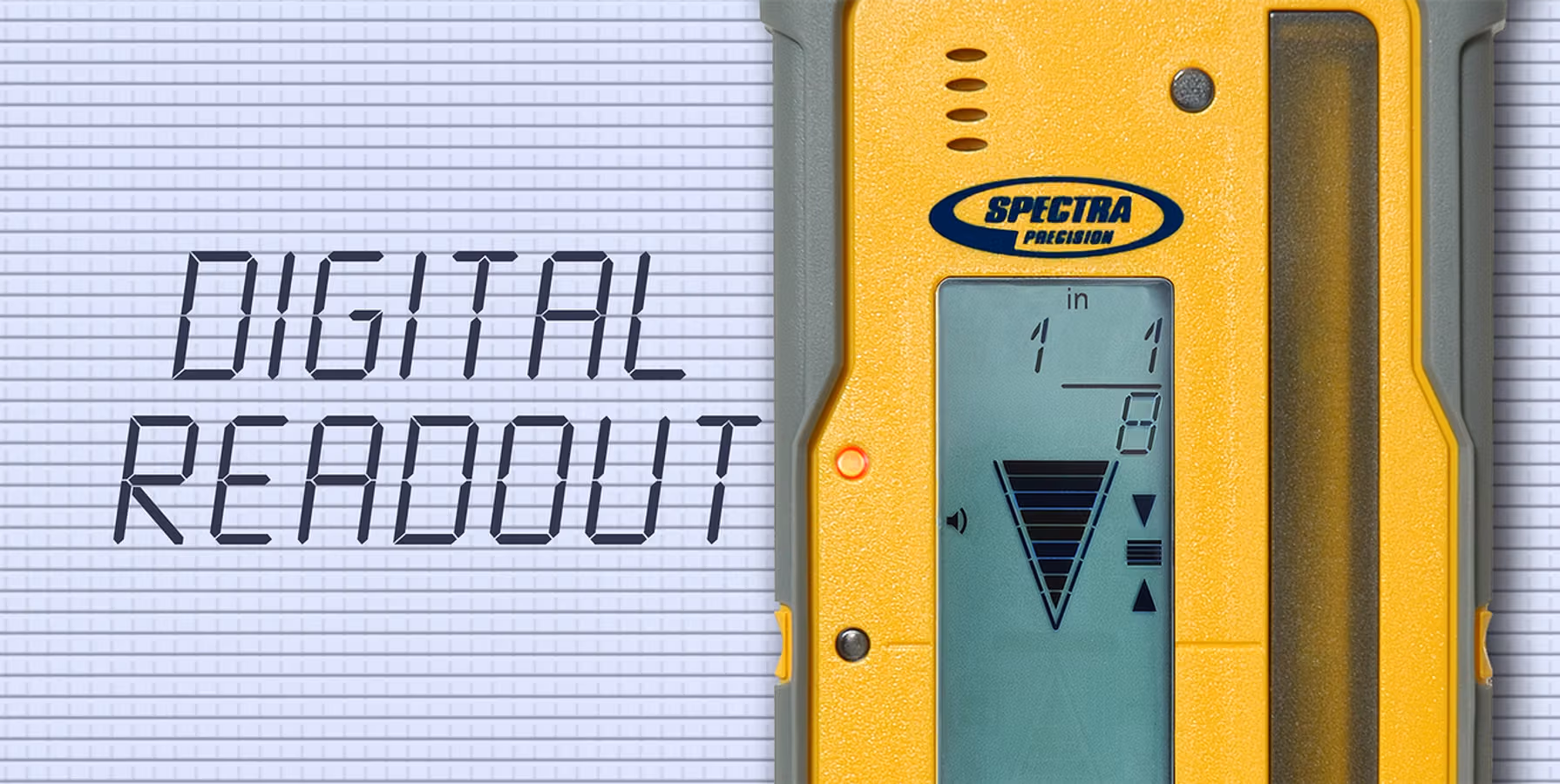

The HL760U features a digital readout of elevation that provides a numeric display of ± 5 cm. The readout is displayed on the large front and rear LCD’s and shows exactly how far the elevation is from on-grade for fast and easy cut/fill readings. Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity. Selectable units of measure can be displayed meeting your application – mm, cm, ft, in or fractional inches.
A 12.7 cm reception height, more than double the industry standard, allows quick acquisition of the laser beam. An anti-strobe sensor prevents false readings from site strobe lights.
Radio communication allows working with another HL760U or HL760 for long range remote display and monitoring capability. A new function termed “Fingerprinting” links the receiver with a particular laser. Once the receiver is paired with the laser transmitter, the receiver has the ability to filter out other lasers that strike the receiver and only accept the laser that it is paired with. The HL760U also provides grade matching and PlaneLok capabilities with the 400 series lasers.

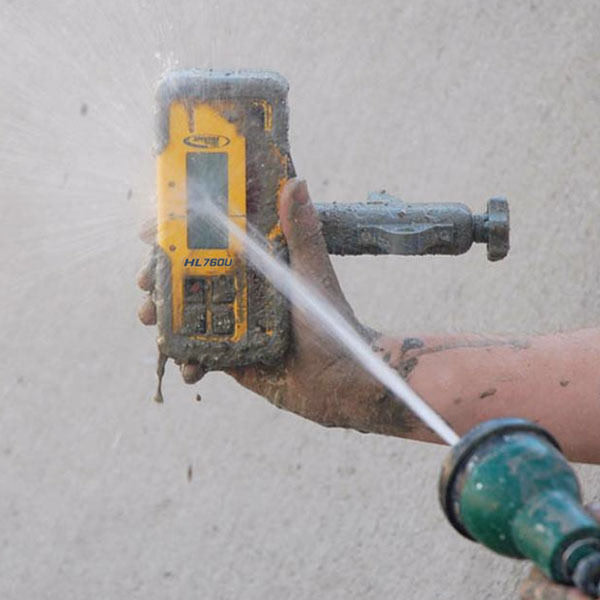

The Digital Readout Receiver is designed to survive the tough construction site conditions; it is totally waterproof and can withstand a drop of 3 meters onto concrete. The HL760U offers a 3-year “No Excuses” warranty.
Features & Benefits
Built for Accuracy, Visibility and Jobsite Reliability
The HL760U is engineered to deliver dependable performance across a wide range of construction applications. From precise digital elevation readings to advanced laser filtering and long-range wireless communication, each feature is designed to improve efficiency and reduce time spent on site adjustments. Its robust construction and intelligent detection technology ensure consistent performance, even in challenging jobsite conditions.
-
Fingerprint function filters out other lasers that strike the receiver and only accepts the laser with which it is paired with
-
No need to go “on-grade” to measure: saves considerable time
-
Reduces rework by allowing remote monitoring
-
Increases reliability, accuracy and durability
Related Media
See the HL760U in Action
Explore the HL760U from multiple angles and get a closer look at its design, key components, and jobsite-ready construction.
