Pipe Laser

DG 211

The thing pipe dreams are made of, this automatic self-leveling pipe laser.

The Spectra Precision® DG211 is a compact, automatic self-leveling pipe laser used for installing gravity-flow sanitary pipe. With a grade range of -20% to +30%, it can handle a wide variety of jobsite requirements. The compact design is specifically designed to fit in 100 mm pipe diameters.

Enquire Now
Clear Display and Durable Design

Easy Operation with Long-Lasting Reliability

A large, easy-to-read Liquid Crystal Display (LCD) is included that indicates the current grade value, the roll position of the housing, the alignment position of the beam, and the battery status. Large keypad buttons and multiple input modes made it easy to input selections. A remote control is included and operates the laser from up to 150 meters through the front of the pipe. A durable housing provides total waterproof and dustproof to an IP68 rating.

Brochure
User Guide

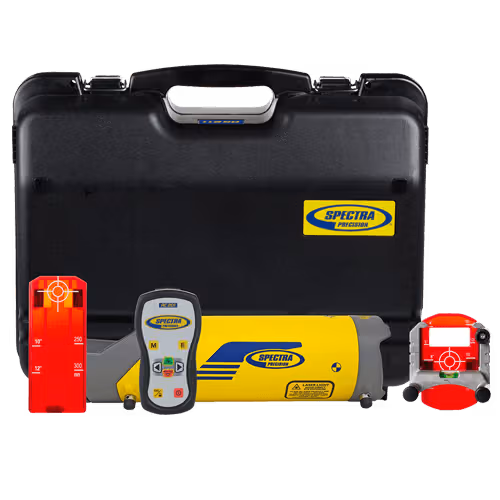

The laser includes a rechargeable Li-Ion battery pack that provides up to 36 hours of use. Alkaline batteries can be used as a backup to power the laser at the job site, so there is no worry for power issues or forgetting to recharge. The laser ships with legs to center in 125 mm pipe. The feet are removed to center in 100 mm pipe. Optional sets are available for various sizes of pipe up to 300 mm.

Features & Benefits

Precision, Durability, and Versatile Operation

The Spectra Precision DG211 delivers reliable performance with automatic self-leveling, a wide grade range, and high accuracy over long distances. Its rugged, waterproof design, long-lasting battery with alkaline backup, and remote control operation make it easy to use in any jobsite condition, while adjustable legs accommodate multiple pipe sizes. Built to last, it comes with a 3-year warranty for added peace of mind.

  • Automatic self-leveling

  • Working range of 150m

  • Grade Range of -20% to +30%

  • Level Accuracy 1.5mm @ 30m

  • Durable Waterproof and Dust-proof

  • Long Li-Ion battery life with alkaline backup

  • Remote Control for ease of operation

  • Multiple leg set for various pipe diameters

  • Roll Alert if pipe laser is moved beyond limit

  • 3 Year Warranty

Related Media

See the DG 211 in Action

Explore the DG 211 from multiple angles and get a closer look at its design, key components, and jobsite-ready construction.
