GNSS Smart Antenna

MS996

Enhanced performance near obstructions

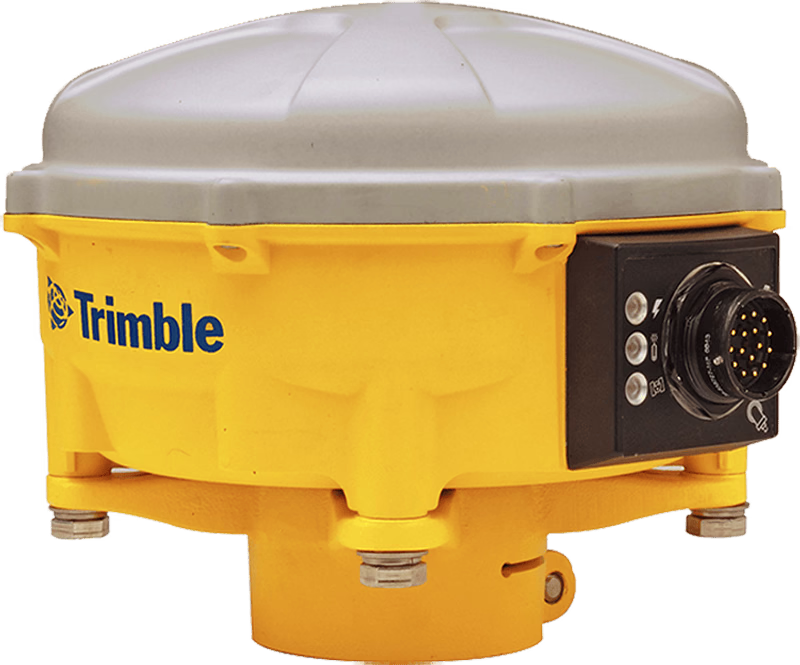

The MS996 contains an integrated GNSS receiver, antenna, and isolation system all in a single, durable housing. It uses the advanced Trimble RTK engine for faster initialization times when satellite lock is lost and enhanced performance near obstructions.

Enquire Now
Next-Generation GNSS Performance

Superior GNSS Performance in the Most Challenging Site Conditions

The Trimble® MS996 GNSS Smart Antenna contains an integrated GNSS receiver, antenna, an isolation system in a single, rugged housing that can withstand even the toughest construction site environments.

Brochure

It is also the only commercially available GNSS antenna that offers the performance enhancements of a new Trimble RTK engine and supports the newest GNSS signals.

All that means increased machine productivity and utilization in areas in which it was previously difficult to use GPS machine control – including under tree canopy and in urban canyons.

Features & Benefits

Precision Features Designed for Maximum Productivity on Site

The MS996 brings together Trimble’s most advanced positioning technologies in a single, construction-grade unit. The Trimble ProPoint RTK Engine delivers faster satellite reacquisition and maintains reliable performance in challenging environments such as urban canyons and areas with heavy tree cover. Simultaneous tracking across GPS, GLONASS, Galileo and BeiDou constellations, combined with support for Trimble xFill and SBAS systems, ensures positioning continuity even when signal conditions are less than ideal. Practical design details including LED status indicators, a high cycle count single cable connector and USB support mode further reduce setup time and simplify ongoing maintenance.

  • Trimble ProPoint® RTK Engine for faster initialization times when satellite lock is lost and enhanced performance near obstructions

  • Simultaneously tracks GPS, GLONASS, Galileo and BeiDou

  • Support for Trimble xFill®, GSOF (General Serial Output Format) and SBAS systems (including WAAS, EGNOS, MSAS, QZSS)

  • Single, rugged unit containing GPS antenna, receiver and isolation system (MS976 GPS antenna and receiver only)

  • Mountable on cab, chassis, or blade (MS976 cab or machine body mount only)

  • Three LED indicators that provide instant operational feedback

  • Single cable connector (high cycle count connector)

  • USB support mode enabling improved firmware update speeds and WebUI browser access

Related Media

See the MS996 in Action

Explore the MS996 from multiple angles and get a closer look at its design, key components, and real-world durability.
