Laser Component
SR300 Laser Receiver Mast
For improved vertical accuracy
When improved vertical accuracy is needed, GNSS systems can be enhanced with the Trimble SR300 Laser Receiver Mast with a GNSS Smart Antenna for blade control to 3-6 mm.
Enquire Now
Precision Elevation Control

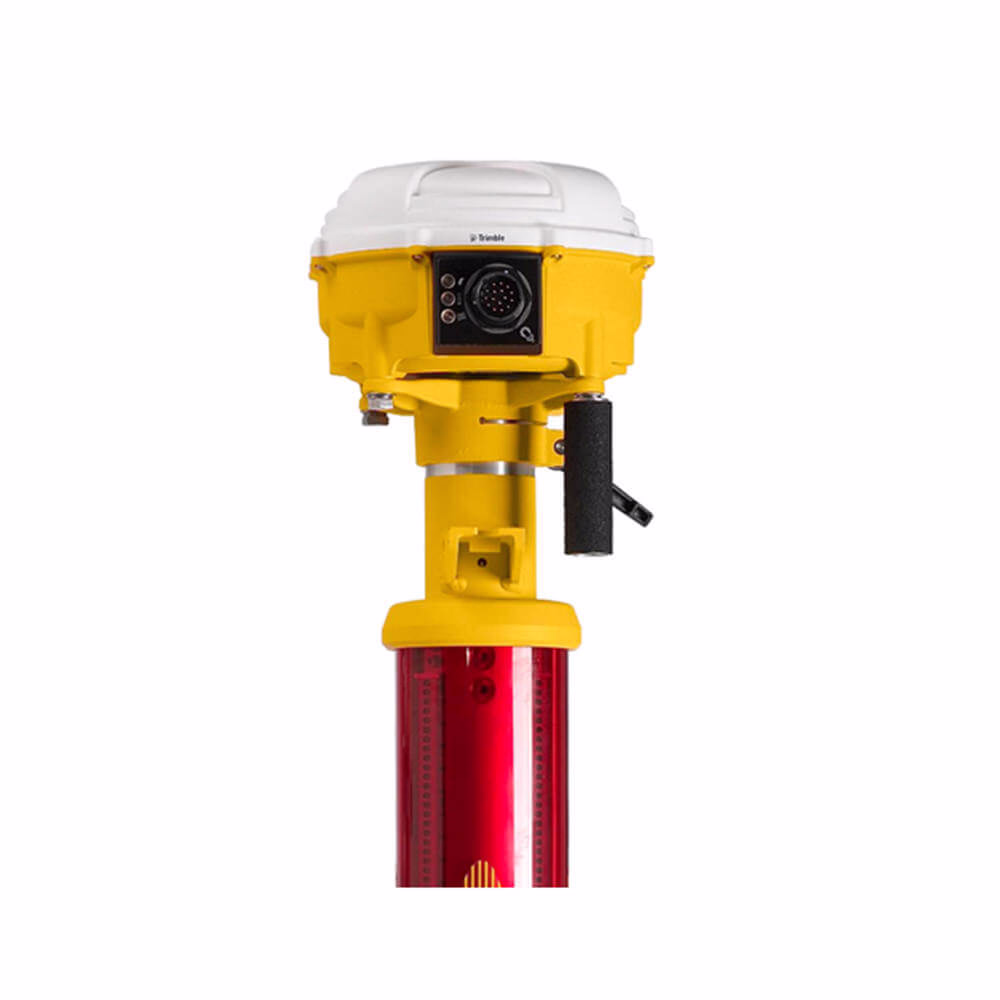

What is the Trimble SR300 Laser Receiver Mast?
The Trimble SR300 laser receiver mast is a grade control component designed to improve vertical accuracy on dozers and motor graders. It works with GNSS systems and laser transmitters to achieve precise elevation control, making it ideal for projects requiring tight tolerances.
SR300 Laser Receiver Overview
| Feature | Trimble SR300 Laser Receiver |
|---|---|
| Technology | Laser receiver |
| Radio Remote | 3–6 mm vertical accuracy |
| Accuracy | GNSS and laser systems |
| Compatibility | Dozers and motor graders |
| Machine use | 360° laser reception |
| Operation | High-precision grading |
| Use case | -0.5 to +25% |
Key Features
Key Features of the Trimble SR300 Laser Receiver
The SR300 has been designed to deliver reliable, high-accuracy performance across a range of grading applications and machine configurations. Its compatibility with both GNSS systems and Trimble GL series lasers makes it a versatile addition to any grade control setup, while its 360-degree laser reception ensures consistent elevation control regardless of machine orientation. For projects where tight vertical tolerances are non-negotiable, the SR300 provides the precision and flexibility required to get the job done right.
-
Provides high vertical accuracy of 3–6 mm for grading applications
-
Enhances GNSS systems with laser-based elevation control
-
360° laser reception for consistent performance on site
-
Works with Trimble GL series lasers and grade control systems
-
Can be used as a standalone receiver for 2D machine control
-
Ideal for projects requiring tight grading tolerances
Trimble SR300 laser receiver mast with GCS900 add on kit. This set up is in Demo condition and still like new, also ready to go to work. This is a set up for laser augmentation. If you need to do 3-6 millimetre vertical accuracy this unit will help you meet those tolerances.
The SR300 laser receiver is ideal for GPS operations with tight tolerances and where GPS is being used. The SR300 can also be used as a stand-alone receiver for 2D work. The SR300 features 360 degree reception that will work with any standard laser like the Trimble GL series.
