GNSS Heading Receiver

MSP566

Delivering highly accurate positions and orientation in challenging GNSS conditions

The Trimble MPS566 receiver delivers highly accurate positions and orientation in challenging GNSS conditions, using a wide variety of GNSS correction sources. This ‘all-in-one’ unit incorporates the latest industry-leading positioning technology from Trimble along with a full suite of modern communications capabilities, in a rugged, compact package that can withstand harsh work environments and be deployed anywhere.

Enquire Now
Precision positioning

High-accuracy GNSS positioning for marine and construction operations

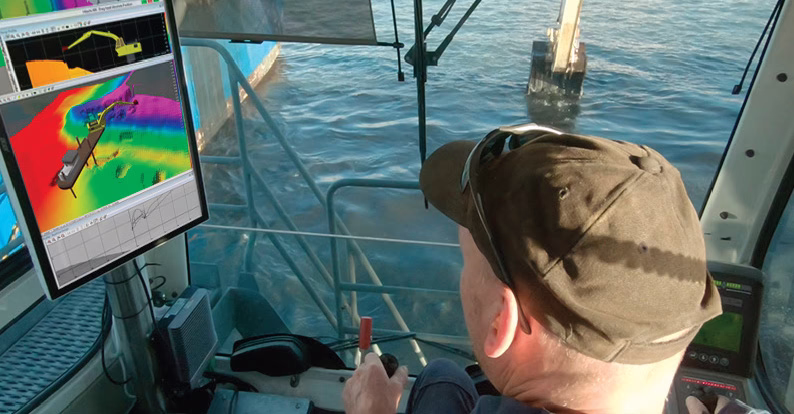

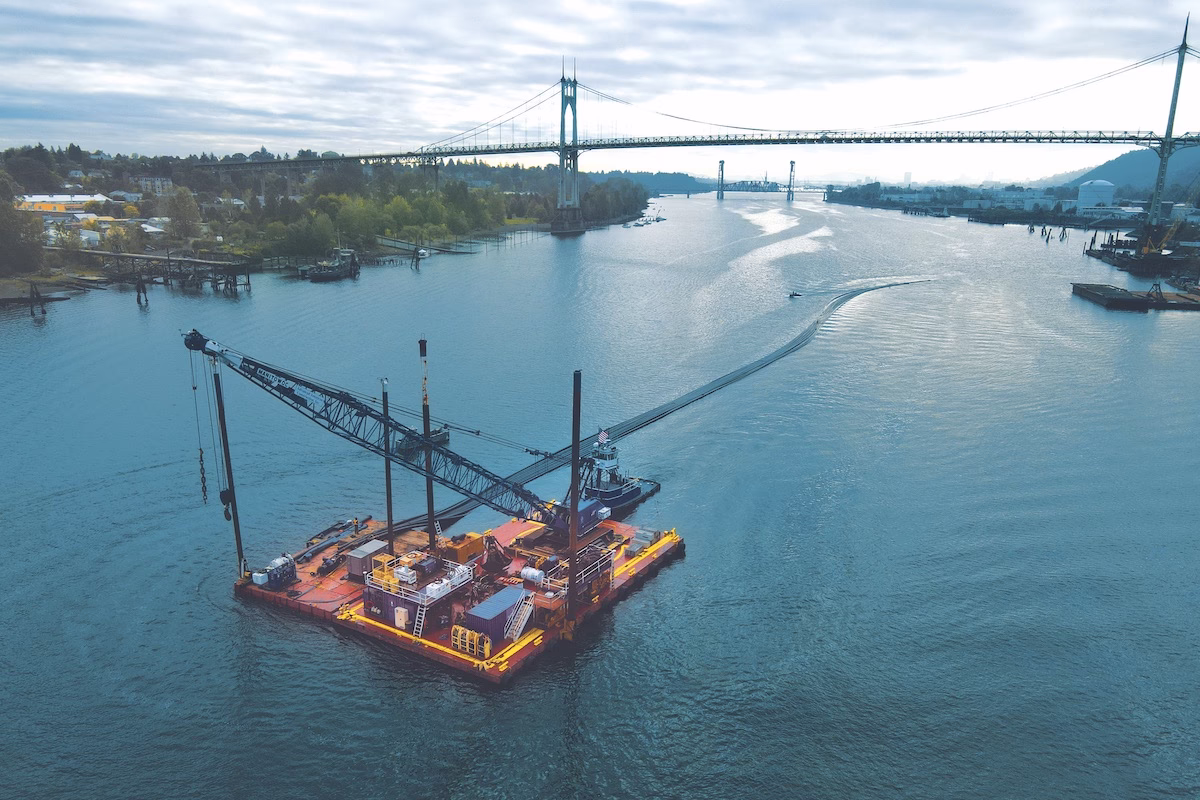

Delivering accurate positioning and orientation from a wide variety of GNSS correction sources makes the Trimble MPS566 the perfect choice for applications demanding exact heading and attitude measurements, including dredging, rock and material placement, and positioning tasks (tugs/anchors).

Datasheet

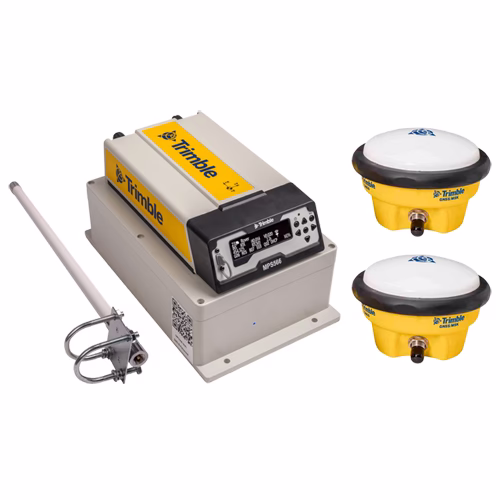

  • Combines position, heading and attitude into a single unit to reduce costs, power requirements and cabling – ideal for small spaces

  • Use the receiver as a cellular hotspot on the vessel for downloads and remote support

  • GNSS correction source connectivity: Wi-Fi, UHF radio, cellular modem, MSK Beacon and two MSS satellite correction channels

  • Integration connectivity: Ethernet, Wi-Fi, Bluetooth and Serial

Key Features

Advanced GNSS performance and connectivity

The Trimble MPS566 delivers industry-leading positioning accuracy and reliability through multi-constellation, triple-frequency GNSS tracking and support for a wide range of correction services. Designed for demanding marine and construction environments, it provides consistent centimetre-level performance even in challenging conditions.

  • 30 cm Location RTK rover capability (RTK correction source required).

  • GNSS triple-frequency tracking:

    • GPS: L1-C/A, L1C, L2E, L2C, L5

    • GLONASS: L1-C/A, L2-C/A, L1P, L2P, L3

    • QZSS: L1 C/A, L1C, L1S, L2C, L5, L6

    • NavIC: L5-C/A

    • SBAS: L1-C/A, L5

  • Trimble CenterPoint® RTX for RTK level precision anywhere (rover upgrade not required) (subscription required).

  • Trimble OmniSTAR® service and Fugro MarineSTAR capable – no rover upgrade required (subscription required).

  • Dual MSS tracking capability (e.g., Trimble RTX® and Fugro MarineSTAR)

  • Trimble ProPoint® technology for superior performance in challenging GNSS conditions.

  • Trimble xFill® technology for seamless RTK coverage during connection outages.

  • Wi-Fi® access point and client.

  • Internal LTE 4G modem with nano SIM slot.

  • Internal UHF radio (depending on the model). See Internal UHF Radio.

  • GNSS data logging to internal memory.

  • 1PPS output, event input.

  • Built-in spectrum analyser in the web browser interface.

  • NMEA outputs.

  • 20 Hz position outputs (50 Hz with Precise Rover upgrade).

Related Media

See the MPS566 in Action

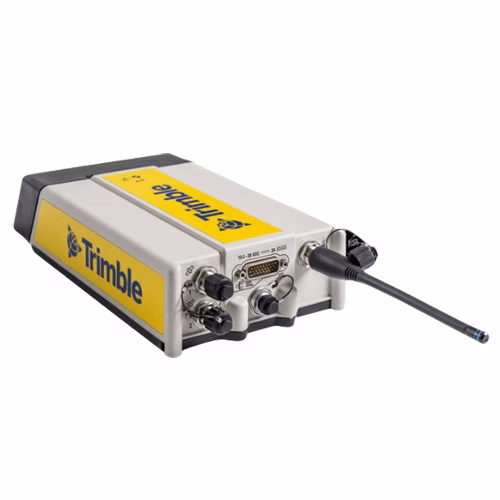

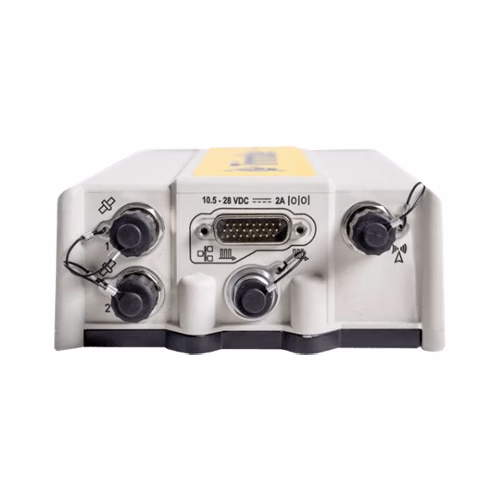

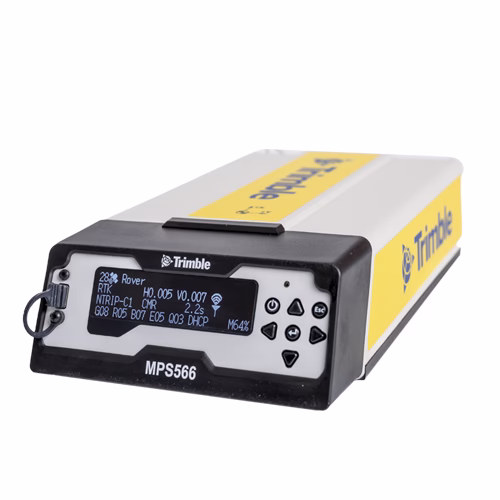

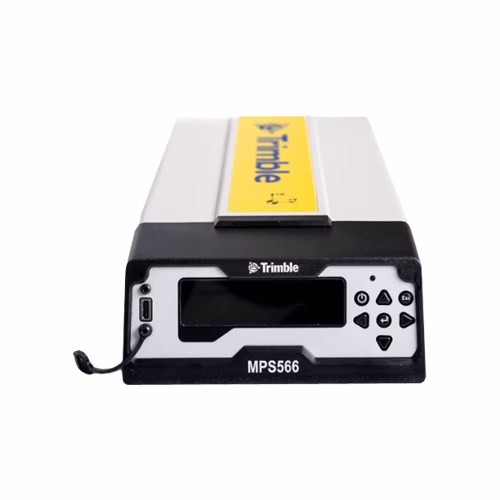

Explore the MPS566 from multiple angles and get a closer look at its design, key components, and real-world durability.
