Robotic Total Station
SPS620
Keep it accurate, but keep it simple
The SPS620 and SPS720 are perfect for one-person operation on smaller site operations and work on structures such as bridges or culverts – offering very high accuracy and reliability for construction site positioning, stakeout and measurement.
Enquire Now
Robotic Total Station Performance
Reliable Field Control with Maximum Productivity
No matter what job you are doing, Trimble robotic total stations will deliver unmatched user experience, all-around capability and incredible results, priced for a quick return on investment.
-
Long life integrated batteries for a full day of uninterrupted work
-

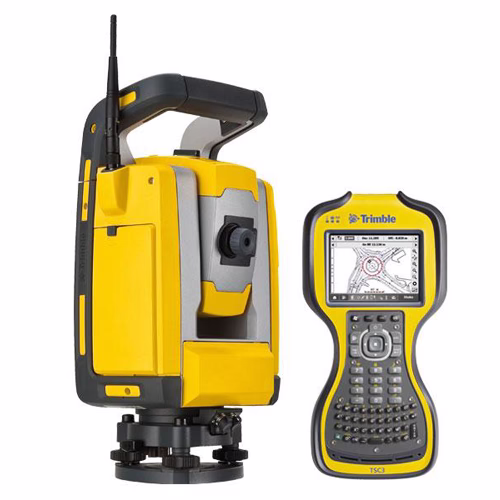

Choice of Trimble controllers or tablets to suit your site needs
-
Intuitive Trimble SCS900 Site Controller Software
Features & Benefits
Advanced Automation for Faster, More Accurate Fieldwork
The SPS620 is designed to improve everyday layout and measurement efficiency with intelligent automation and consistent performance. Automatic levelling checks and fast distance measurements help reduce setup errors and keep work moving smoothly on site.
Automatic Functions
Take accurate measurements in less time, and get real-time alerts to make adjustments. More accurate data captured using a faster instrument speed means increased productivity and faster results to grade.
-
Automatically corrects for mislevelments +/- 6’, immediately warns the operator of any mislevelments beyond 6’ and average angles during distance measurements to increase consistency, prevent costly delays and subsequent rework
-
When measuring in standard mode, the Trimble SPSx20 Total Station takes approximately 2 seconds to measure the distance
-
Angles returned to the Trimble SPSx20 Total Station at 1000Hz are averaged over the 2 second period to obtain an average angle measurement; the resultant angle measurement is an average of over 2000 observations
MagDrive
-
Offers fast pointing, aiming and tracking, plus slow motion controls for manual aiming
-
Trimble MagDrive™ servo technology is an electromagnetic direct drive servo system which gives high turning speeds and accuracy, the frictionless motion removes servo noise and reduces instrument wear
-
Endless horizontal and vertical motion, including fine adjustment
MultiTrack technology
-
Locks on and tracks passive prisms for control measurements, and active prism targets for dynamic measurements required for grade control applications
-
Prevents costly delays and subsequent rework; faster machine speed means increased productivity and faster results to grade
Related Media
See the SPS620 in Action
Explore the SPS620 from multiple angles and get a closer look at its design, key components, and real-world durability.
