AI-Powered Proximity Detection

Real-Time Hazard Awareness That Keeps Operators and People Safer

The system is equipped with AI technology that accurately identifies approaching obstacles as human, vehicle or general obstacles while simultaneously offering up to 360-degree visibility coverage. It allows you to minimize risks and prevent workplace incidents by equipping your vehicle with the advanced PROX-EYE™!

PROX-EYE™ by Correct-Ai provides real-time proximity awareness and terrain hazard notifications to operators of industrial heavy equipment. Intelligent warnings are shown on a monitor within the cab for easy viewing. The PROX-EYE™ has many features which help to alleviate operator stress and increase safety and efficiency on job sites.

The PROX-EYE™ system is equipped with AI technology which identifies approaching objects as human, vehicle, or a general obstacle. This minimizes false-positives and makes it easier for operators to identify true hazards. While monitoring the area around the equipment the system also records and stores data. This data is easy to view and can be used for post incident evaluation as well as the collection of statistics for ad hoc reporting. The PROX-EYE™ monitors and reports on equipment operation and near misses on site.

The system consists of:

Off-the-shelf hardware (LiDAR and Camera) integrated into a package
Software developed to detect and classify objects, measuring distance, speed, direction and slope changes

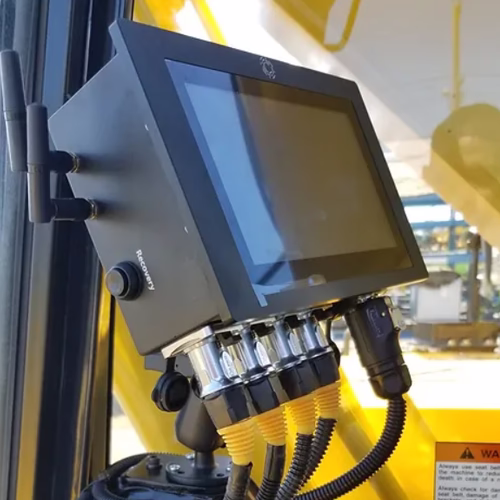

The information is provided to the equipment operator via a monitor mounted in the cab of the equipment

Key Features

Purpose-Built Features Designed to Protect People and Improve Site Safety

The PROX-EYE combines advanced optical hardware with AI software to give operators clear, reliable hazard awareness without information overload.

Increase Operator Visibility

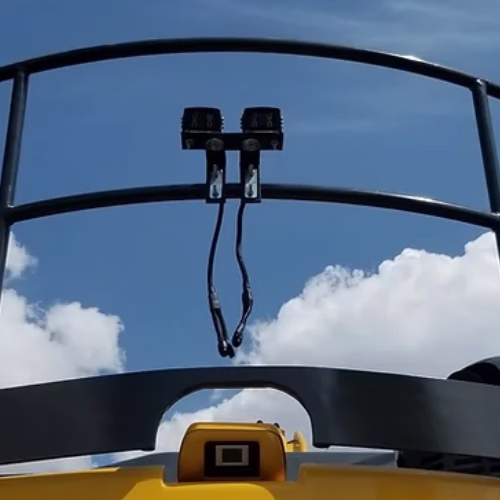

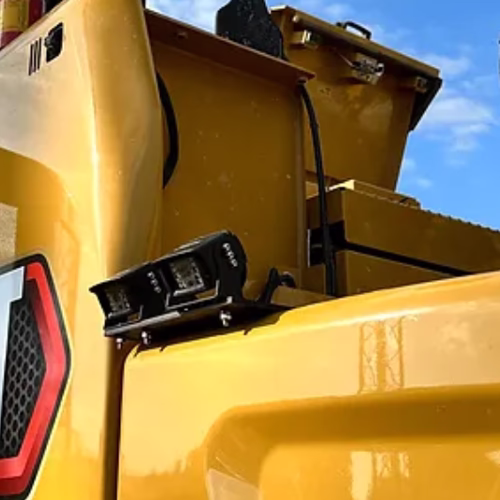

Eliminate or reduce blind spots with the use of cameras.
Supports multiple camera configurations for wider site coverage.

Proximity Warning and Detection Systems

IR and White Light cameras measure distance, speed and size of any obstacle in real-time.
LiDAR available for precision measurement of distance, speed, grade and slope.

Cutting-Edge Computing

AI processes data in real-time to identify true threats and reduce false positive alerts.

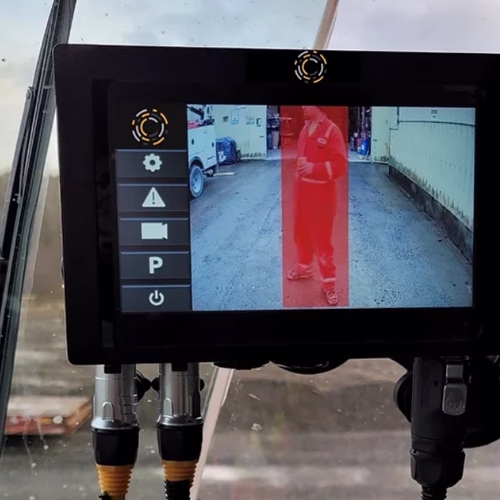

Intelligent display design prevents information overload and keeps operators focused.

Recording Data

Solid-state recorder captures video and images from all cameras for post-incident analysis.
Event data can be exported to the PROX-EYE Dashboard or existing management tools for reporting.

Intelligent Detection and Awareness

Customisable Safety Features That Give Operators Full Situational Awareness

The PROX-EYE goes beyond basic proximity warnings, offering fully customisable detection zones, terrain risk alerts and 360-degree visibility coverage. All alert data is stored and accessible for real-time review or post-incident analysis, giving site leadership the insights needed to make proactive safety decisions.

Objects, Personnel and Obstacles Identification

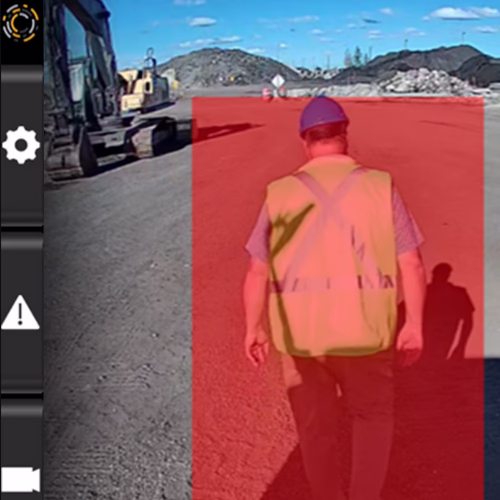

PROX-EYE™ boasts advanced capabilities in identifying and distinguishing humans, objects, and vehicles as they enter the customized detection zone. The operator will receive a visual alert upon detection of a human, object or vehicle in their attention zone, with the option to choose between two display modes. Moreover, an alarm will sound when any item enters the danger zone. Users can customize the type of objects (humans, animals, vehicles, etc.) they want to be alerted to. This identification feature is designed to increase safety by drawing the user’s attention to relevant obstacles.

Customizable Detection Zones and Types

Customize green (safe), yellow (attention), and red (danger) zones to suit your workplace needs.

Identifies Terrain Risks

PROX-EYE™ is the ideal solution for identifying terrain risks. Users can customize alarms that alert them of their roll angle, pitch angle, and proximity to a cliff. This feature is incredibly useful as it heightens operators’ awareness of their surroundings, thereby improving their safety.

Offers 360 Degree Visibility

The Trimble T110 tablet is a rugged device with an IP65 ingress protection rating and MIL-STD-810H certification for durability in harsh environments.

Predictive Analytics for Leadership

By combining collected data from all alerts, it becomes possible to make proactive decisions when managing worksites. Streamlining future work safety can be achieved by alerting management to areas of high alerts, among other valuable data.

Collects Leading Safety Indicator Data

The PROX-EYE™ stores all alerts in its memory, allowing users to review them later or in real-time. Important details such as the time the alert was triggered, the distance of the object, and what it was (human, vehicle, obstacle) can be accessed for review.

Three Models, One Mission

Choose the PROX-EYE Configuration That Fits Your Site and Budget

The PROX-EYE range offers three distinct models, each designed to deliver reliable AI-powered proximity detection across a range of operational requirements and budget considerations. From the centimetre-precise LiDAR model built for harsh environments to the cost-effective ECO model offering accurate collision warning and classification, there is a PROX-EYE configuration suited to every application.

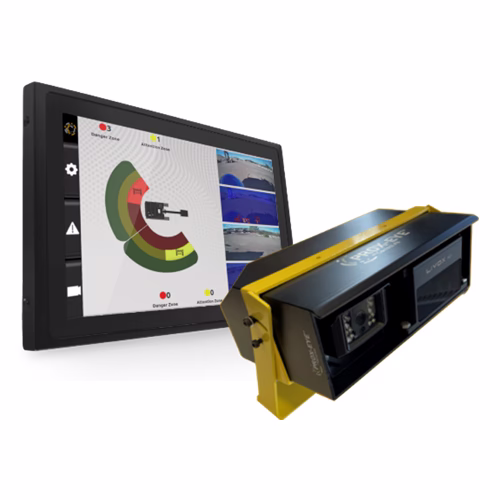

PROX-EYE LiDAR

Key Features:

Collision warning based on artificial intelligence.
Detects and classifies humans, vehicles, obstacles, and wildlife with extremely low false positive rate.
Data and video capture function.
Provides leading indicators & predictive analytics.
Customizable zones & detection alerts.
Up to 360 degree visibility.
Weatherproof, shockproof, dustproof, affordable, and compact design.

What sets PROX-EYE™ LiDAR apart?

Centimetre precision.
Cliff detection, and pitch & roll measurements.
Best suited for harsh environment and low lighting conditions.

PROX-EYE Stereo

Key Features:

Collision warning based on artificial intelligence.
Detects and classifies humans, vehicles, obstacles, and wildlife with extremely low false positive rate.
Data and video capture function.
Provides leading indicators & predictive analytics.
Customizable zones & detection alerts.
Up to 360 degree visibility.
Weatherproof, shockproof, dustproof, affordable, and compact design.

What sets PROX-EYE™ Stereo apart?

Decimeter precision.
More cost-effective than PROX-EYE™ LiDAR while retaining most of its features.

PROX-EYE ECO

Key Features:

Collision warning and classification based on artificial intelligence.
Detects and classifies all people, industrial equipment and vehicles with extreme accuracy
Fixed detection zones.
Weatherproof, shockproof, dustproof, affordable, and compact design.
High-resolution cameras provide clear, detailed images.
Supports up to four cameras connected to a single monitor.

What sets PROX-EYE™ Stereo apart?

CentimMost economical price.etre precision.
Uses different dashboard and camera than PROX-EYE™ LiDAR & Stereo.

Applications

PROX-EYE Solutions Across a Wide Range of Heavy Equipment

The PROX-EYE system has been developed to improve safety and situational awareness across a broad range of heavy equipment types. Whether deployed on dozers, excavators, haul trucks, loaders, rock trucks or telehandlers, the system delivers the same reliable AI-powered proximity detection and classification capabilities, tailored to the specific blind spots and operational risks associated with each machine type.
