Automated, Accurate Payload Measurement
Load Volume Scanner (LVS)
Fully configurable – to suit your specific business needs.
9:33 AM The Loadscan Load Volume Scanner delivers real-time, non-contact volumetric measurement for trucks and trailers across mining, quarrying, logistics and bulk material operations. Trusted globally for its accuracy and reliability, the LVS gives operations the data they need to improve productivity, protect revenue and maintain complete load transparency.
Enquire Now
Enterprise-Grade Data Security
Industry-Leading Load Volume Measurement Technology
The Loadscan® Load Volume Scanner (LVS) is a proven, high-accuracy load volume scanner system designed to measure truck and trailer loads in real time. Trusted globally across mining, quarrying, logistics, forestry, and bulk material operations, Loadscan delivers reliable volumetric data that improves productivity, billing accuracy, and operational transparency.
Whether deployed as a fixed installation or a trailer mounted mobile LVS-3TMM, Loadscan solutions provide fast, non-contact scanning for all vehicle types and material profiles.
What Is a Load Volume Scanner?
A load volume scanner, also known as a volumetric load scanner, uses laser scanning technology to measure the exact volume of material carried by trucks, trailers, or containers. The Loadscan LVS captures a precise 3D profile of each load, removing the need for manual estimation or unreliable visual checks.
This data is automatically processed and stored in the Loadscan MyScanner software, ensuring consistent, auditable, and tamper-proof results.
Choose Loadscan
Why Choose the Loadscan LVS?
The Loadscan LVS stands apart from other volumetric measurement systems through its internationally certified accuracy, purpose-built software and detailed 3D load visualisation. Together, these capabilities give operations the confidence, control and data needed to make informed decisions and consistently achieve better results on site.

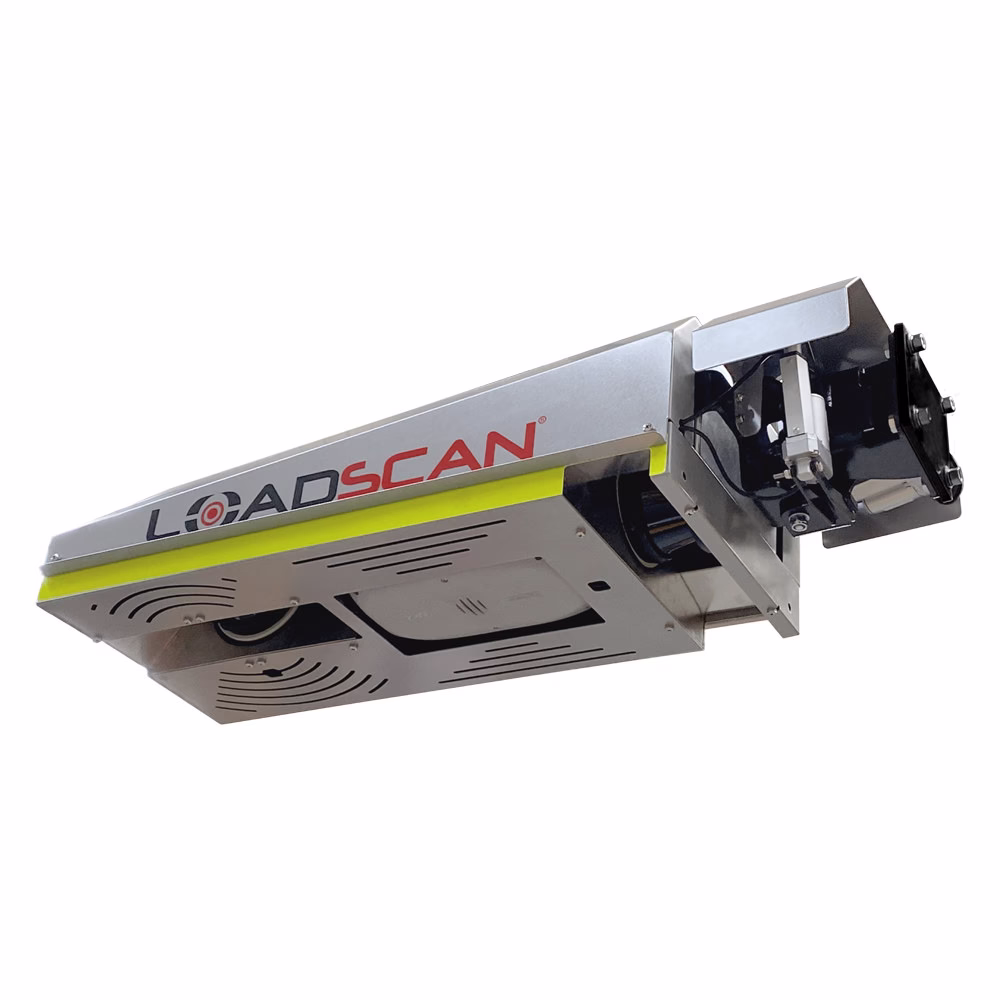

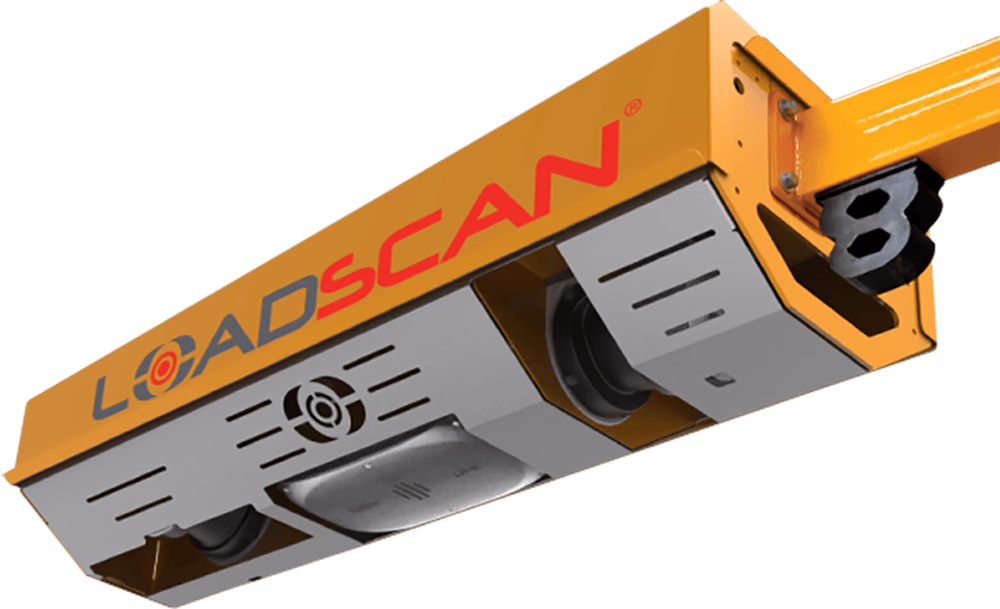

Accuracy Starts at the Scan Head
Loadscan is the only volumetric scanning manufacturer with internationally recognised Weights and Measurement Certifications (AUS & NZ), ensuring measurement accuracy to +/-1%.

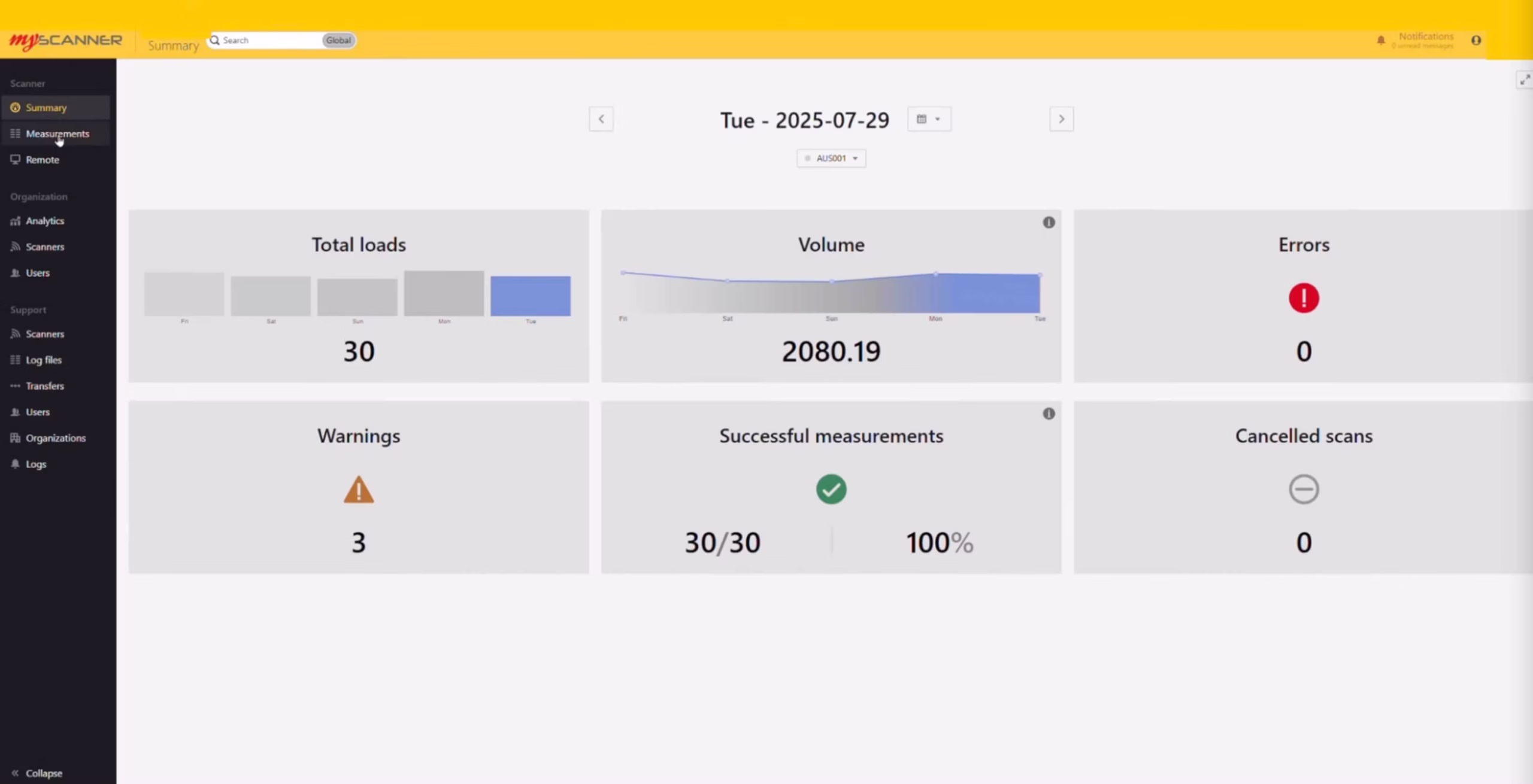

Utilize World-Class Software
Loadscan’s MyScanner™ reporting software has been developed in conjunction with industry to ensure it is user friendly and data rich.

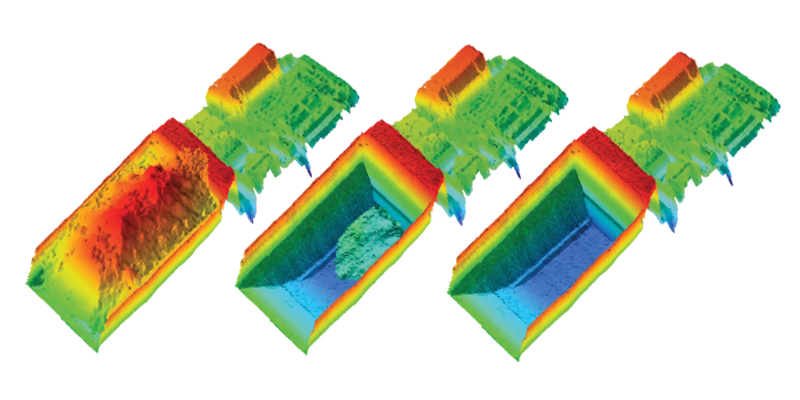

View 3D Images of Every Load
The LVS automatically records detailed load information. You’ll easily identify off-centre or sub-optimal loading and you’ll be better equipped to coach and train loader operators.
Configuration Options
Four Configurations to Suit Any Site or Application
The Loadscan LVS is available in four mounting configurations, each designed to meet the specific deployment needs of different operations and site types. Whether you require a permanent fixed installation, a long-term portable setup, a mobile solution that moves between sites, or a custom configuration for specialist environments such as underground portals or large dumpers, there is a Loadscan LVS system suited to your requirements.
Block Mounted Fixed LVS-3BMF
-
For permanent locations with a site office
-
Mains (line) power configuration for ‘always on’ system
Learn More
Block Mounted Portable LVS-3BMP
-
For long term jobs or fixed locations
-
Common applications include quarries, sand-pits, bark and mulch yards
Learn More

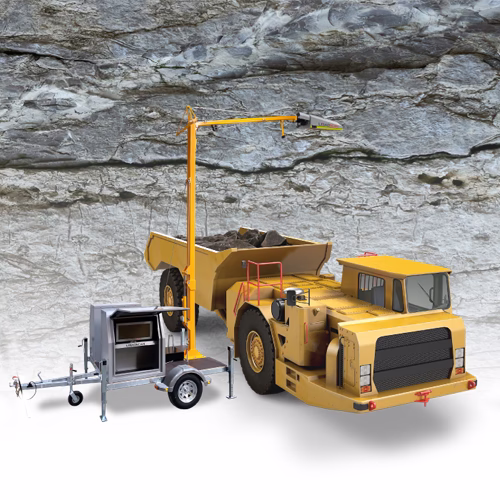

Trailer Mounted Mobile LVS-3TMM
-
For short term jobs or use across multiple locations
-
Common applications include construction sites, remote quarries, for hire
-
Can be powered by main power, generator or solar
Learn More
Custom Mounted MPS-3CMX
-
Utilizes a universal mounting bracket
-
Common applications include entry/exit to underground mine portals or tunnels, and above large dumpers
Learn More
System Components
Everything You Need Included as Standard in Every LVS System
The standard block-mounted LVS configuration shown below is designed for use with on-road trucks and small off-highway articulated dumpers. Vehicles are scanned by driving slowly below the elevated scan head. The scanning process is fully automated.
A touch-screen operator console provides for easy operator control and monitoring of the system and a high visibility LED message board displays load results, driver instructions and status messages. All Loadscan LVS systems also include an RFID tag reader (for automatic identification of each truck and trailer), docket printer, LVS measurement software, and MyScanner™ reporting software.
Enjoy Exceptional Benefits with every Load Volume Scanner System
| Benefits | Description |
|---|---|
| Accurate Volumetric Measurement | High-precision laser scanning ensures consistent and repeatable results. |
| Improved Revenue Protection | Prevent under- or over-loading disputes with verified load data. |
| Operational Efficiency | Fast scanning keeps traffic moving without delays. |
| Data Transparency | All data stored and accessible via the Loadscan MyScanner Cloud Portal. |
| Scalable Deployment | Fixed, mobile, and trailer mounted mobile LVS-3TMM options available. |
Extend Your System’s Capabilities
Powerful Add-ons to the Standard System Configuration
The Loadscan LVS can be further enhanced with a range of purpose-built add-ons that improve data capture, remote accessibility and operational oversight. The LoadTrak in-cab consoles allow drivers to enter load details directly from the cab, while the MyScanner Remote Access portal gives managers and supervisors secure, real-time access to load data and system controls from anywhere in the world.
LoadTrak in-cab Consoles
-
In-cab touch screen consoles for mining and quarry applications
-
Allows you to upload additional load information directly from the cab
Learn More
MyScanner Remote Access
-
Subscribe annually to your own secure web portal
-
Allows you to access your scanner and data remotely
-
Includes 24/7 support and routine software updates
Learn More
Related Media
See the Load Volume Scanner in Action

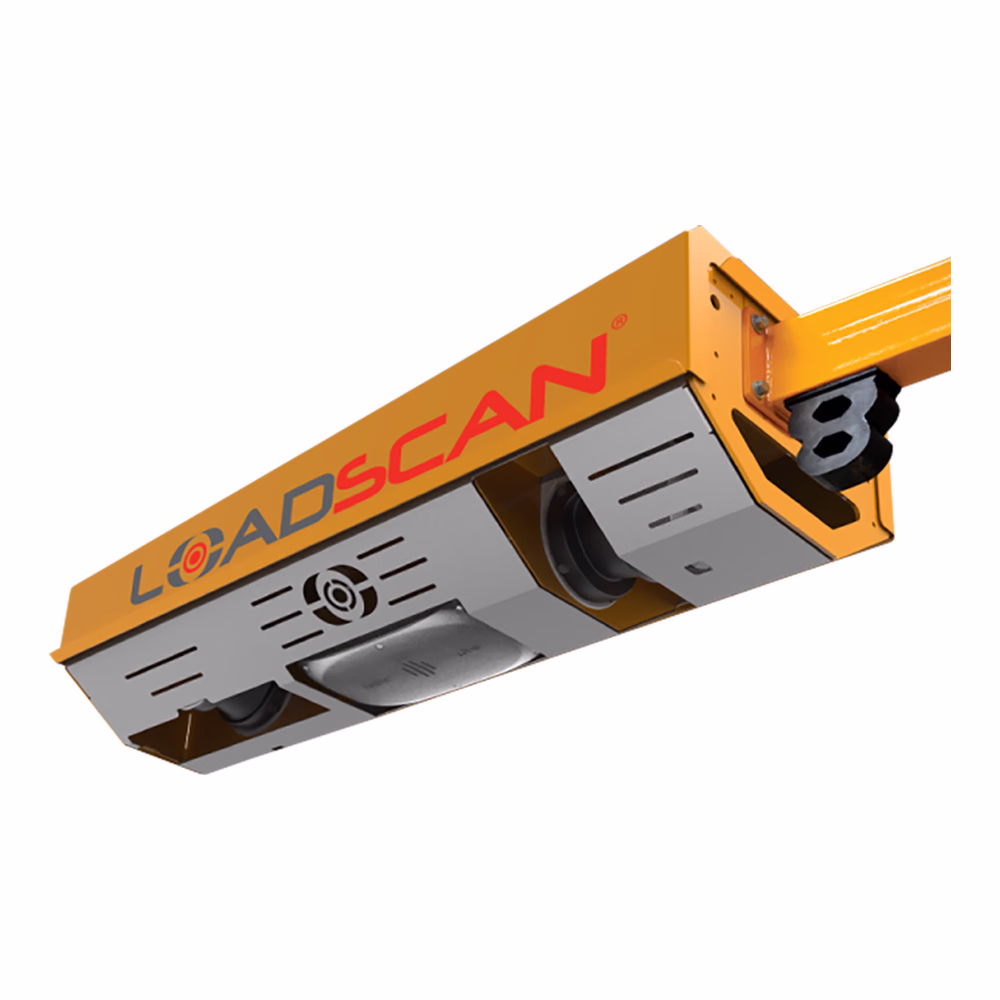

Explore the Load Volume Scanner from multiple angles and get a closer look at its design, key components, and jobsite-ready construction.
