Portable Truck Measurement

Portable® LVS-3BMP

Ideal for large or long-term portable truck measurement projects

Portable Loadscan® LVS-3BMP is an advanced load volume scanner designed to deliver accurate, non-contact truck volume measurement which is ideal where flexibility and mobility are required. As part of the trusted Loadscan range of volumetric load scanners, this unit measures actual material volume reliably and efficiently while keeping installation and setup simple.

Enquire Now
Why The LVS-3BMP

Why Choose the Loadscan Portable LVS-3BMP?

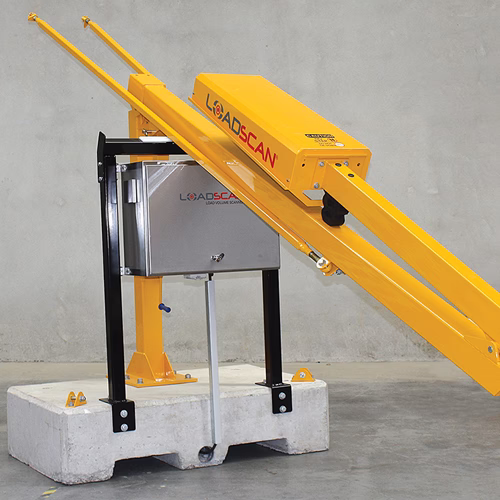

The block mounted portable LVS-3BMP combines precision measurement with site mobility. Perfect for quarries, mulch yards, sand pits, civil sites, and long-term portable truck measurement projects. Mounted on a precast block for easy repositioning, this volumetric load scanner adapts to changing site layouts without sacrificing measurement accuracy.

Read More

Read more about the Loadscan® Load Volume Scanning Solutions

Features & Benefits

  • Portable (fork-slots and lifting points provided)
  • Built-in kiosk options for operator console, printer, generator and LED message board housing
  • RFID Tag Reader for automatic vehicle identification
  • Solid, stable or low security concern
  • Runs off generator*, mains (line) power or 24VDC power source

Contact Us

Contact Us for more information on Loadscan® Load Volume Scanning Solutions

Overview

Loadscan & LVS Scanner Technology Overview

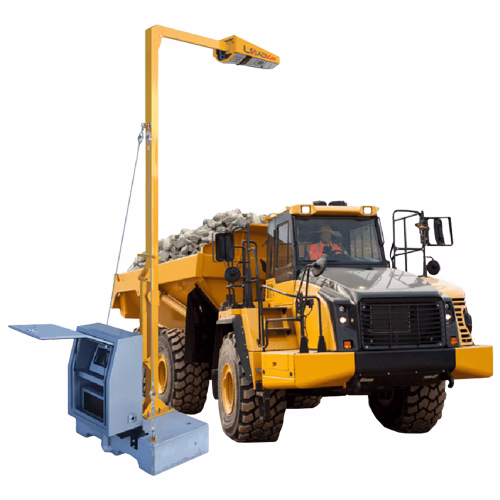

A Loadscan load volume scanner system like the LVS-3BMP automatically captures a 3D profile of material in a truck bed using laser scanning technology allowing for elimination of guesswork and manual estimation. Trucks simply pass under the elevated scan head at low speed, and the system captures the precise volumetric load data for reporting and analysis.

How It Works

This automated process improves operational transparency, billing accuracy, and data integrity compared with traditional weight-based or manual methods.
  • Vehicle enters scanning zone.
  • Laser scanning head records a 3D load profile.
  • Volume is computed via proprietary Loadscan software.
  • Results are displayed locally and stored in the Loadscan MyScanner Cloud Portal.

Integrations & Software

Your Loadscan load volume scanner can feed data into the MyScanner cloud portal, giving you:
  • Remote access to scan results
  • Historical volume analysis
  • User permissions and data export
  • Reporting for billing, compliance, productivity
Cloud accessibility means your team can collaborate and monitor loading performance from anywhere with internet access.

Common Industry Uses

This LVS scanner is widely used across:
  • Mining operations
  • Construction and civil projects
  • Bulk material supply chains
  • Quarries, sand and stone depots
  • Mulch, bark, and landscaping materials
Anywhere trucks carry irregular loads, Loadscan improves measurement consistency and operational efficiency.

Loadscan Price & Value Considerations

Loadscan price varies based on configuration, deployment options, and added software integrations. Upfront system cost depends on your site’s needs. Long-term gains include improved accuracy, fewer disputes, and automated reporting. These benefits deliver rapid ROI compared to traditional truck scales.
For tailored pricing and site evaluation, please request a quote using the form below.
Related Media

See the Portable LVS-3BMP in Action

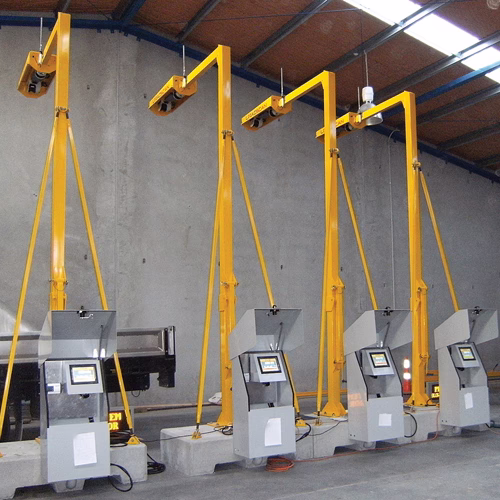

Explore the Portable LVS-3BMP from multiple angles and get a closer look at its design, key components, and jobsite-ready construction.
