Mobile Power Supply

Solar Power Trailer

24/7 Power supply in remote regions

The Loadscan Solar Power Trailer is a purpose-built, off-grid energy solution designed to keep your mobile load volume scanner running continuously in remote locations. Free from reliance on grid power or diesel generators, it provides stable, clean energy to ensure uninterrupted scanning and accurate volumetric measurement wherever your operation takes you.

Enquire Now
Off-Grid Power for Remote Sites

Loadscan Solar Power Trailer for Mobile Load Volume Scanning

The Loadscan Solar Power Trailer is a purpose-built, off-grid energy solution designed to support trailer mounted mobile LVS-3TMM and other mobile load volume scanner deployments. Engineered for remote mining, quarrying, and bulk material sites, it ensures uninterrupted operation of the Loadscan load volume scanner system without reliance on grid power or diesel generators.

Developed by Loadscan, this solar-powered solution enables sustainable, cost-effective volumetric measurement wherever your truck volume scanner is deployed.

Key Benefits of the Loadscan Solar Power Trailer

Benefits Description
Off-Grid Operation Powers mobile Loadscan load volume scanner systems in remote locations without grid access.
Sustainable Energy Solar generation reduces fuel costs and emissions while supporting volumetric load scanner operations.
Reliable Performance Provides stable power for continuous operation of Loadscan LVS and truck volume scanner systems.
Mobile Integration Optimised for trailer mounted mobile LVS-3TMM and other mobile load scanner deployments.
Reduced Downtime Ensures uninterrupted scanning and consistent data capture via the Loadscan MyScanner Cloud Portal.
Built for Demanding Site Conditions

Designed for Mobile Load Volume Scanner Environments

The Loadscan Solar Power Trailer is engineered to meet the demands of high-throughput bulk material operations. When paired with a volumetric load scanner or truck volume scanner, it provides stable, clean energy to ensure precise and repeatable measurements.

This solution is ideal for:

  • Mining haul roads
  • Quarries and aggregate sites
  • Remote logistics and bulk transport corridors
  • Temporary or relocatable scanning sites

Enquire Now

Contact Us for more information on Loadscan® Load Volume Scanning Solutions

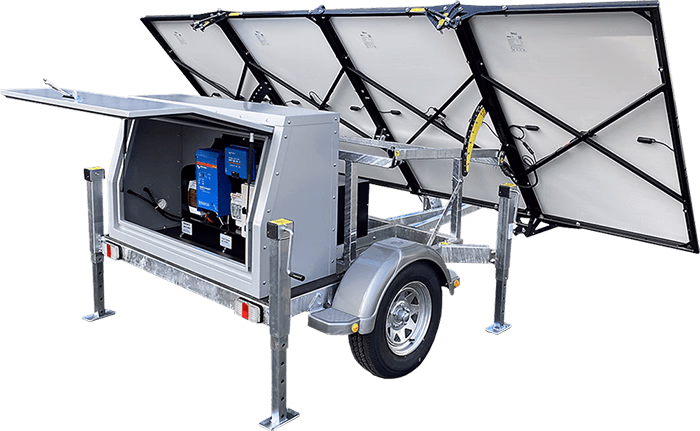

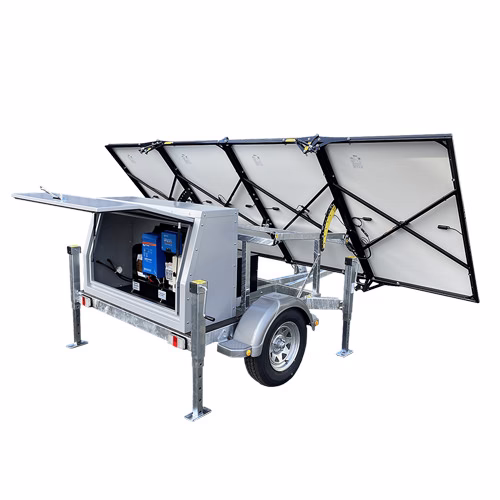

Technical Specifications

  • Four 325W solar array panels, 1.3Kw peak charging

  • Tilt range — 5° to 65° in 5° adjustable increments

  • Temp. compensated MPPT Controller with 98% conversion efficiency

  • Adaptive three-step charging

  • 8.6KwHr battery storage (4.3KwHr usable)

  • Up to 1.2Kw pure sinewave power output at 110 / 230 Vac

  • Generator start/stop control via 2-wire connection

  • Built-in web control via Victron Portal-enabled remote monitor:

    — solar voltage and current
    — battery voltage and current
    — load current
    — temperature (via customer ethernet connection or modem)

  • AC voltage input port for generator or grid connection

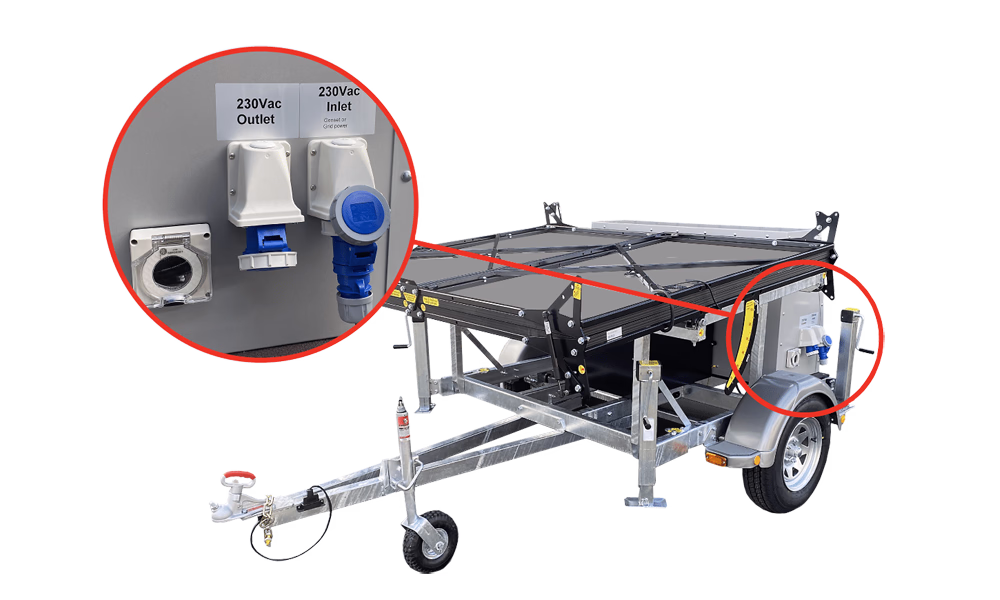

Up to 1.2Kw pure sinewave power output at 110Vac or 230Vac

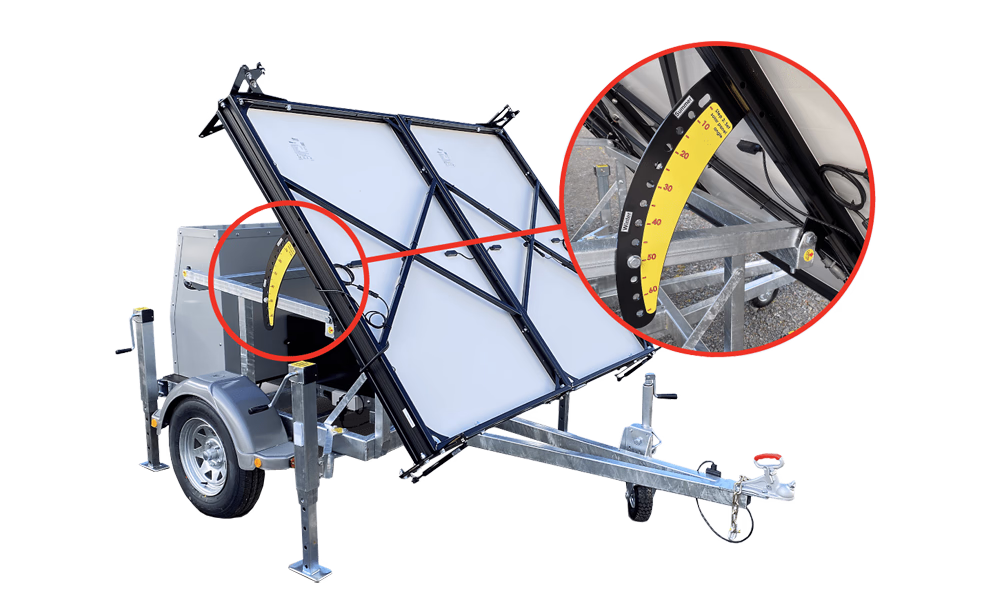

Adjustable tilt range of 5° to 65° to optimise summer and winter sun angles

Related Media

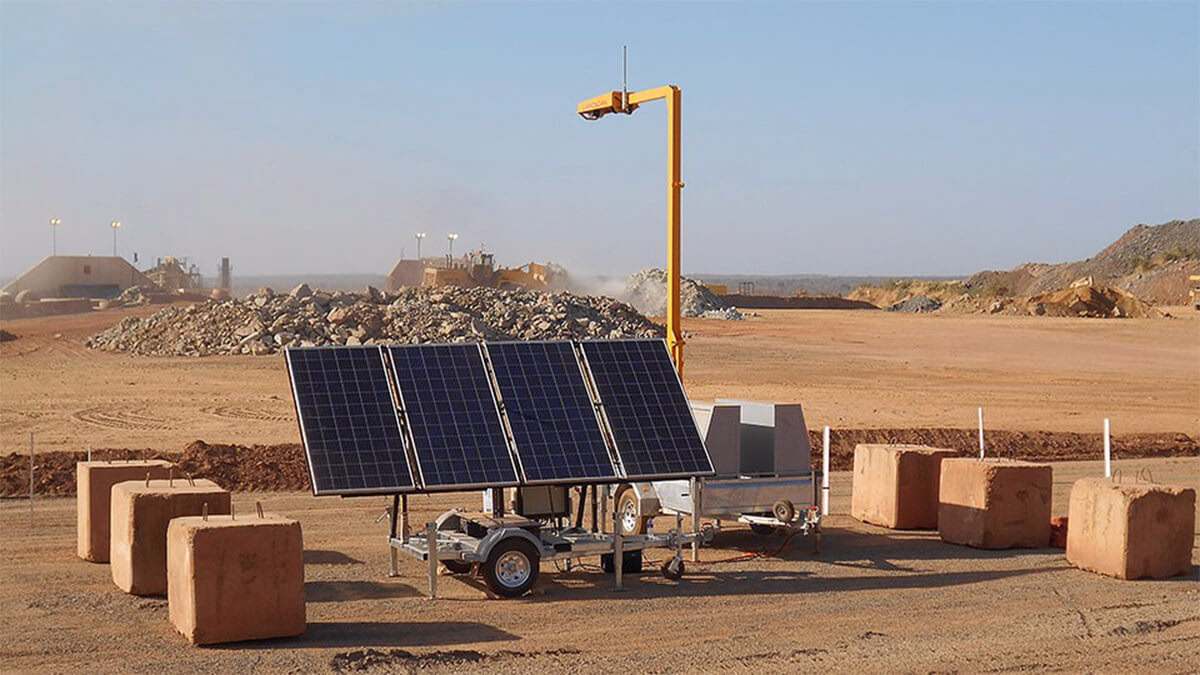

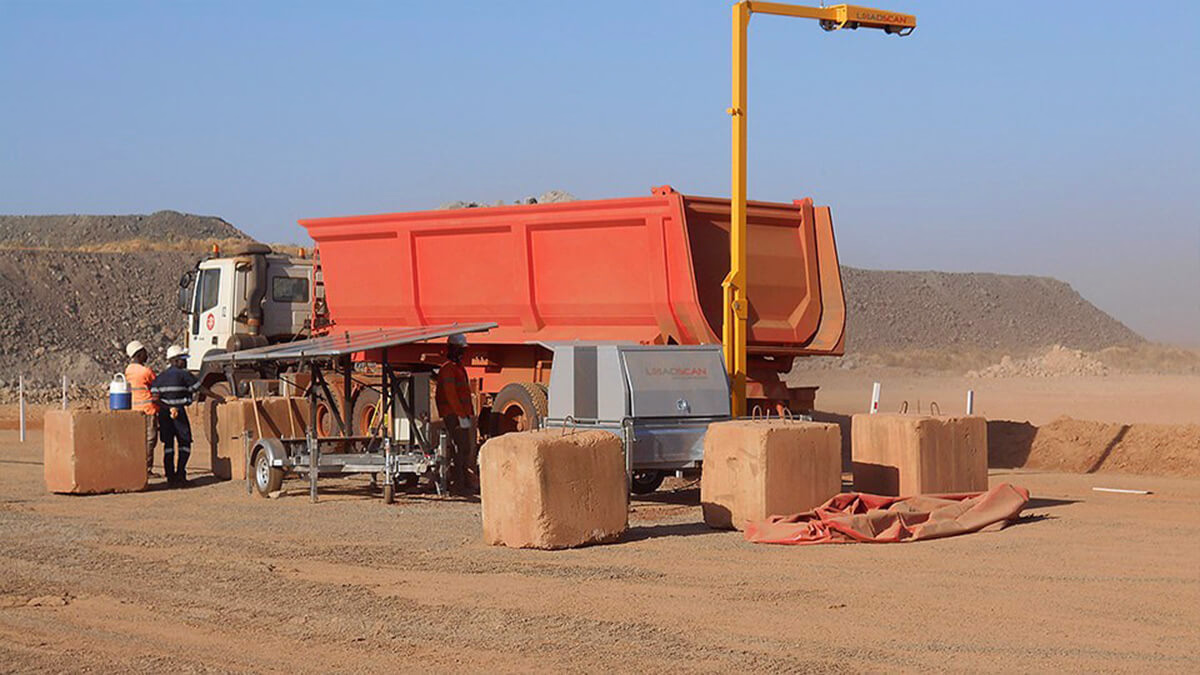

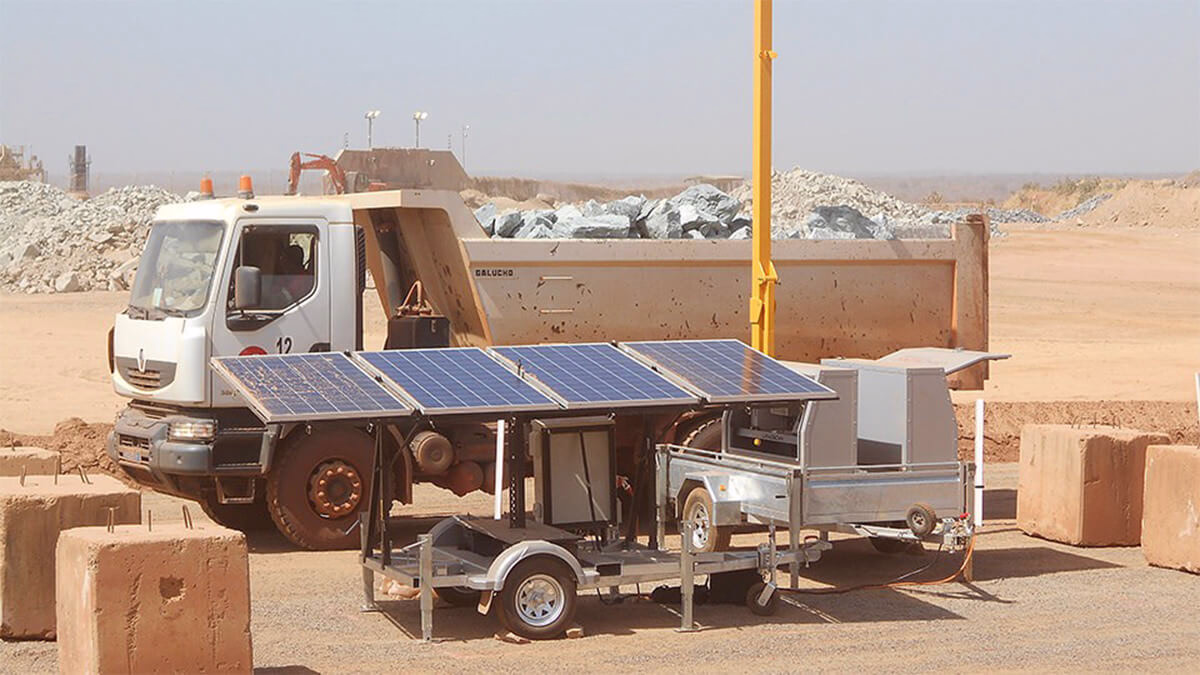

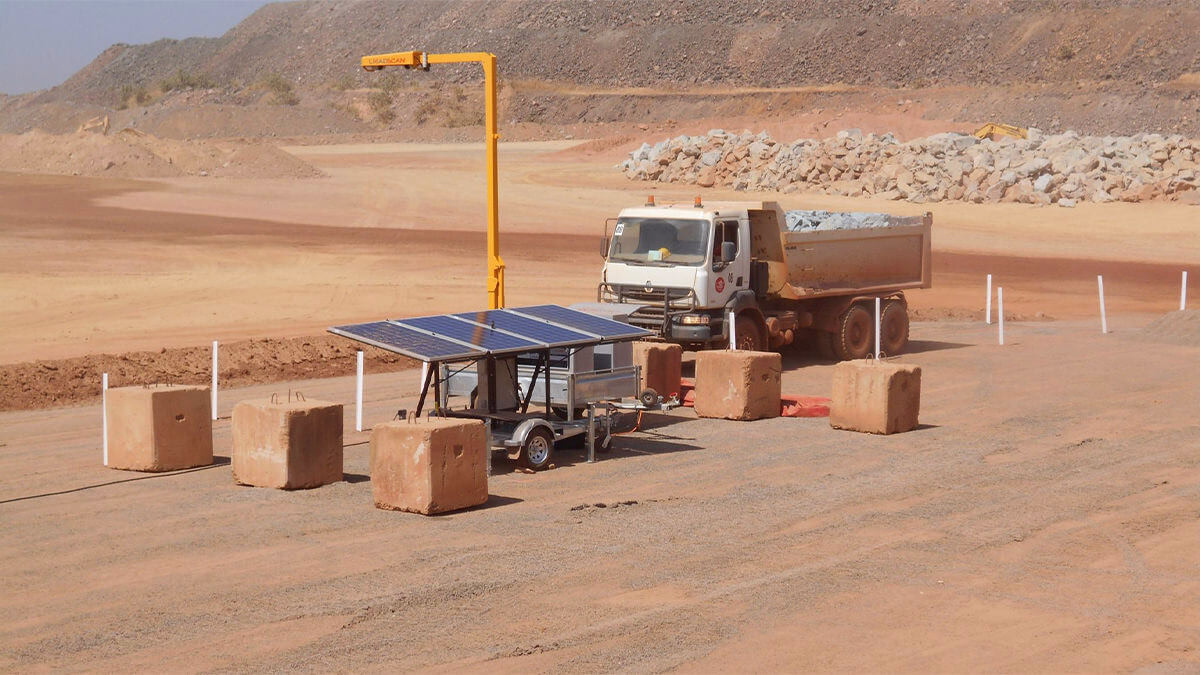

See the solar Power Trailer in Action

Explore the Solar Power Trailer from multiple angles and get a closer look at its design, key components, and jobsite-ready construction.
